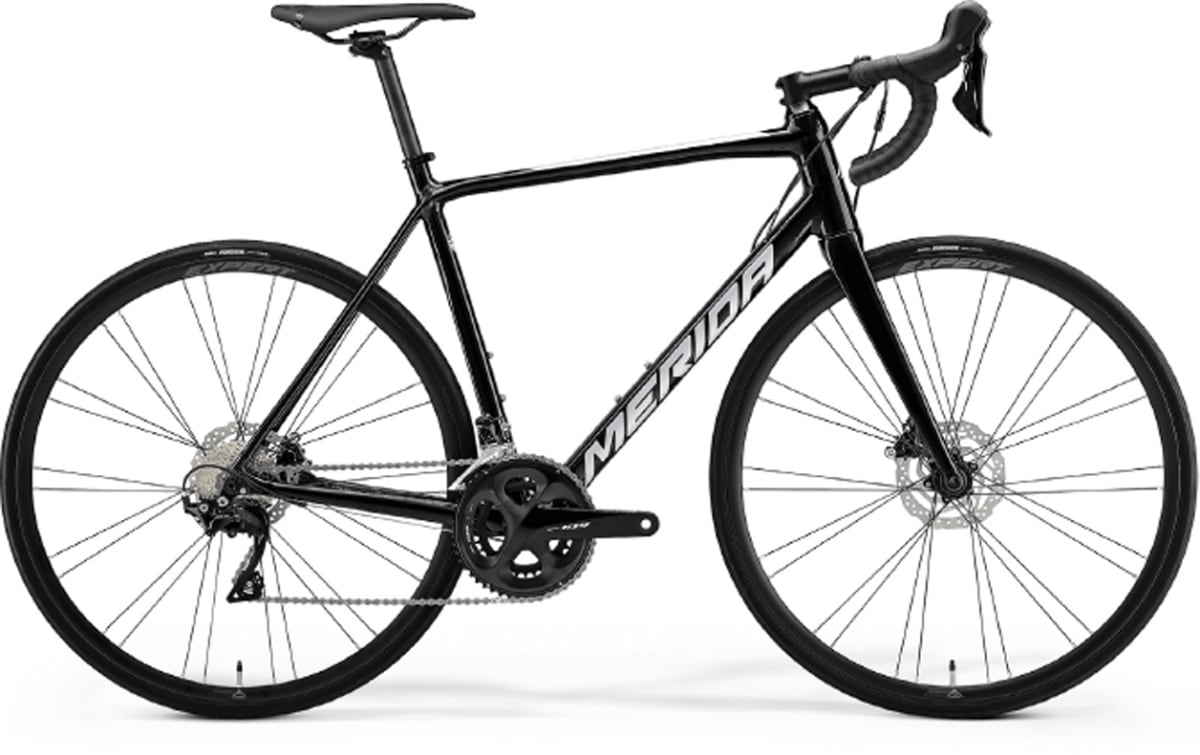

The Scultura Rim 400 (M/L) 54CM Black / Silver is available at the following locations.
The item will be transferred to the location you choose during checkout.
If the item is not currently available to view at your desired location, please call your nearest store to arrange for it to be transferred.
Lightweight aluminium frame with full carbon tapered fork, equipped with a full Shimano 105 22 speed groupset.
The Scultura has always been the powerhouse of any Merida sponsored or supported ProTour teams powering them to world tour stage victories.
The Lite frame uses cutting edge aluminium technology - 6066 series triple butted and hydroformed aluminium tubing with smooth welding to deliver a light responsive frame. The tapered full carbon fork delivers precise steering.
| Frame | Lite BSA - 6066 triple butted and hydroformed aluminium with smooth welding. Â Tapered head tube. BSA BB standard, 9mm QR axle standard, Internal cable routing. Maximum tyre clearance 700 x 25c |
| Fork | Scultura Rim CF2; full carbon. Tapered steerer. Max. tyre size: 700 x 25c |
| Headset | Merida M2331 Neck |
| Stem | Merida Expert CC; aluminium; 31.8mm diameter; -5 degree rise - Stem length: 80mm (XXS/XS), 90mm (S), 100mm (SM/ML), 110mm (L/XL) |
| Handlebar | Merida Expert SL, aluminium; Width: 380mm(XXS), 400mm (XS-S), 420mm (S/M-M/L), 440mm (L-XL) |
| Grip | Merida Road Expert |
| Brake Type | Calliper |
| Brake Lever | Shimano 105 |
| Front Brake | Shimano 105 calliper |
| Rear Brake | Shimano 105 calliper |
| Front Tyre | Maxxis Pursuer; 700 x 25C; Kevlar bead; folding |
| Rear Tyre | Maxxis Pursuer; 700 x 25C; Kevlar bead; folding |
| Wheel Size | 700c |
| Rim | Merida Comp SL; 17mm inner rim width; 24mm depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Spokes | Double Butted Black stainless |
| Front Hub | Road sealed bearing; 100x9mm; 24 spokes; Quick Release |
| Rear Hub | Road sealed bearing; 130x9mm; 28 spokes; Quick Release |
| Speeds | 22 |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105; GS |
| Shift Levers | Shimano 105 |
| Chain | KMC X11 |
| Cassette | KMC X11 |
| Chainset | Shimano 105; 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (S/M,M/L), 175mm (L/XL) |
| Bottom Bracket | Shimano BB-RS500 BSA |
| Pedals | Not included |
| Saddle | Merida Comp SL; V-mount |
| Seat Post | Merida Expert CC; Carbon; 27.2mm diameter; 15mm lay back |
| Colours | Black / Silver |
| Sizes | (M/L) 54CM |
| Brand | Merida |
| Barcodes | 4710949830991, 4710949831004, 4710949831011 |
| SKUs / Part Numbers | 6110929575, 6110929586, 6110929597 |
Please note: Manufacturers can sometimes change the specification of the products from time to time.
