The 2026 Charter+ 4 R9 540 Wh - 540Wh L DARK WEB is available at the following locations.
The item will be transferred to the location you choose during checkout.
If the item is not currently available to view at your desired location, please call your nearest store to arrange for it to be transferred.

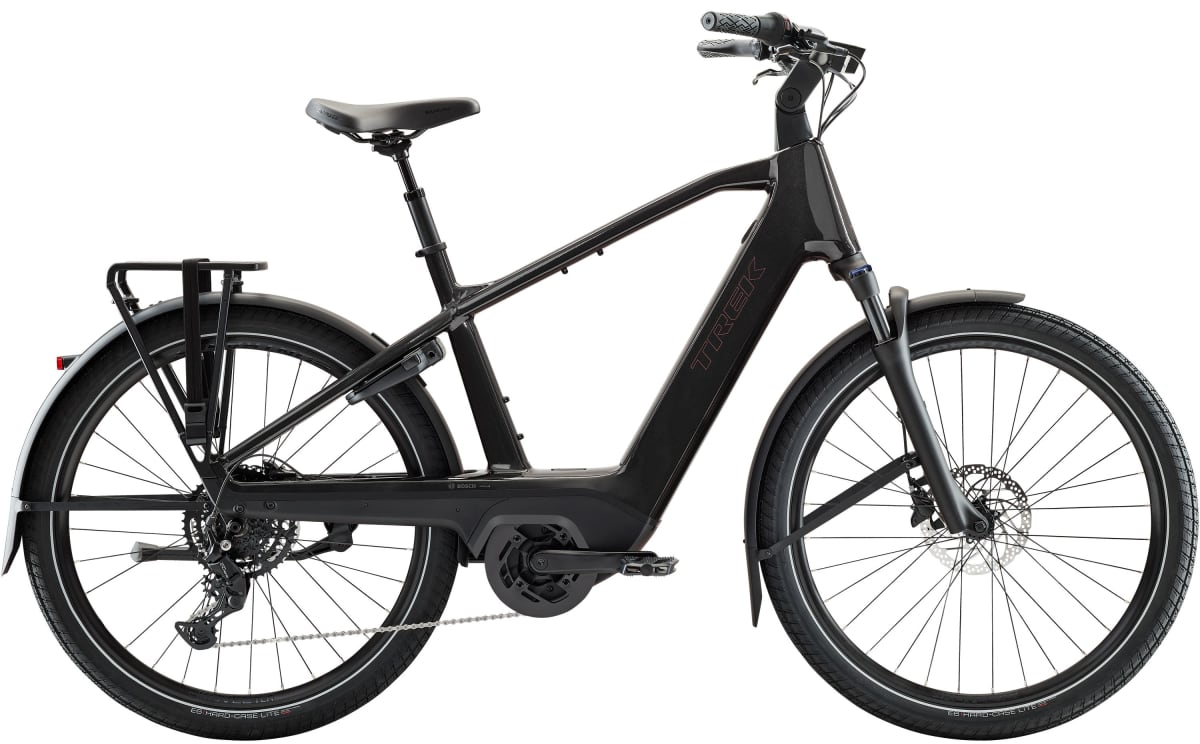

The Charter+ 4 540 Wh is a city e-bike that's truly ready for anything. Its adjustable cockpit lets you customise the ride fit from an upright, comfort-first position to a more active pedal-efficient fit. It comes with a premium Alpha Platinum frame with a coil-sprung fork, 9-speed Shimano CUES shifting and a 540 Wh battery to give you a steady boost on commutes and joyrides.
A better way to produce aluminium
Starting in 2024, we began removing high-emission aluminium from our manufacturing and replacing it with low-emission aluminium made with renewable energy. By October 2025, nearly every alloy bike we make - this one included - had made the switch, driving a major drop in our footprint.
Shimano CUES
Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano's new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette and chainrings.
Shimano LINKGLIDE
LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting - along with a great pedalling experience. Available exclusively on Shimano CUES drivetrains.
Upgrade your pedals and love your bike more
Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.
| Frame | Size L, Premium Alpha Platinum Aluminum frame, top-load PowerPack, integrated cockpit routing, 135x5mm QR |
| Fork | SR Suntour SF25-NVX32, coil spring, preload adjuster, 5 mm ThruSkew, 63 mm travel |
| Wheel Size | Front 27.5 / Rear 27.5 |
| Wheels | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve // Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve Shimano Tourney HB-QC300, centerlock Shimano TC500, CenterLock |
| Tyres | Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40" // Bontrager E6 Hard-Case Lite, reflective, wire bead, 60 tpi, 27.5x2.40" |
| Battery | Bosch PowerTube 540 Wh |
| Charger | Bosch standard 2A, 230V, smart system |
| Display | Bosch Purion 200 |
| Motor | Bosch Performance Line, 250 W, 75 Nm, 20 mph (25 km/h in Europe) |
| Shifter | Shimano U4000, 9-speed |
| Rear Derailleur | Shimano CUES U4000 |
| Crank | ProWheel alloy, 170 mm length |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Pedals | Bontrager City pedals |
| Front Brake | Shimano MT200 hydraulic disc // Shimano MT200 hydraulic disc // Shimano MT200 hydraulic disc Shimano EM300, CentreLock, 180 mm // Shimano RT30, CentreLock, 180 mm Max brake rotor size |
| Rear Brake | Shimano MT200 hydraulic disc // Shimano MT200 hydraulic disc // Shimano MT200 hydraulic disc Shimano EM300, CentreLock, 180 mm // Shimano RT30, CentreLock, 180 mm Max brake rotor size |
| Handlebar | Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width |
| Grips | Trek Ergonomic Comp, lock-on |
| Stem | Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 80mm length |
| Seatpost | Alloy, suspension, 31.6 mm, 300 mm length |
| Seatpost Clamp | Bolt-on, 36.4 mm |
| Saddle | Bontrager Boulevard |
| Front Light | Trek LED, taillight // Trek LED, 400 lumen low/800 lumen high, headlight |
| Kickstand | Pletscher Comp Flex 40 |
| Weight | 26.8 kg |
| Colours | DARK WEB |
| Sizes | L, M, XL |
| Brand | Trek |
| Model Year | 2026 |
| Barcodes | 197216285250, 197216285267, 197216285274 |
| SKUs / Part Numbers | 5341810, 5341811, 5341812 |
Please note: Manufacturers can sometimes change the specification of the products from time to time.
